Actual Product Title: H1431-10X2-1/2 H.D. SWIVEL
New Product Title: FAULTLESS 91276 H1431-10X2-1/2 H.D. SWIVEL

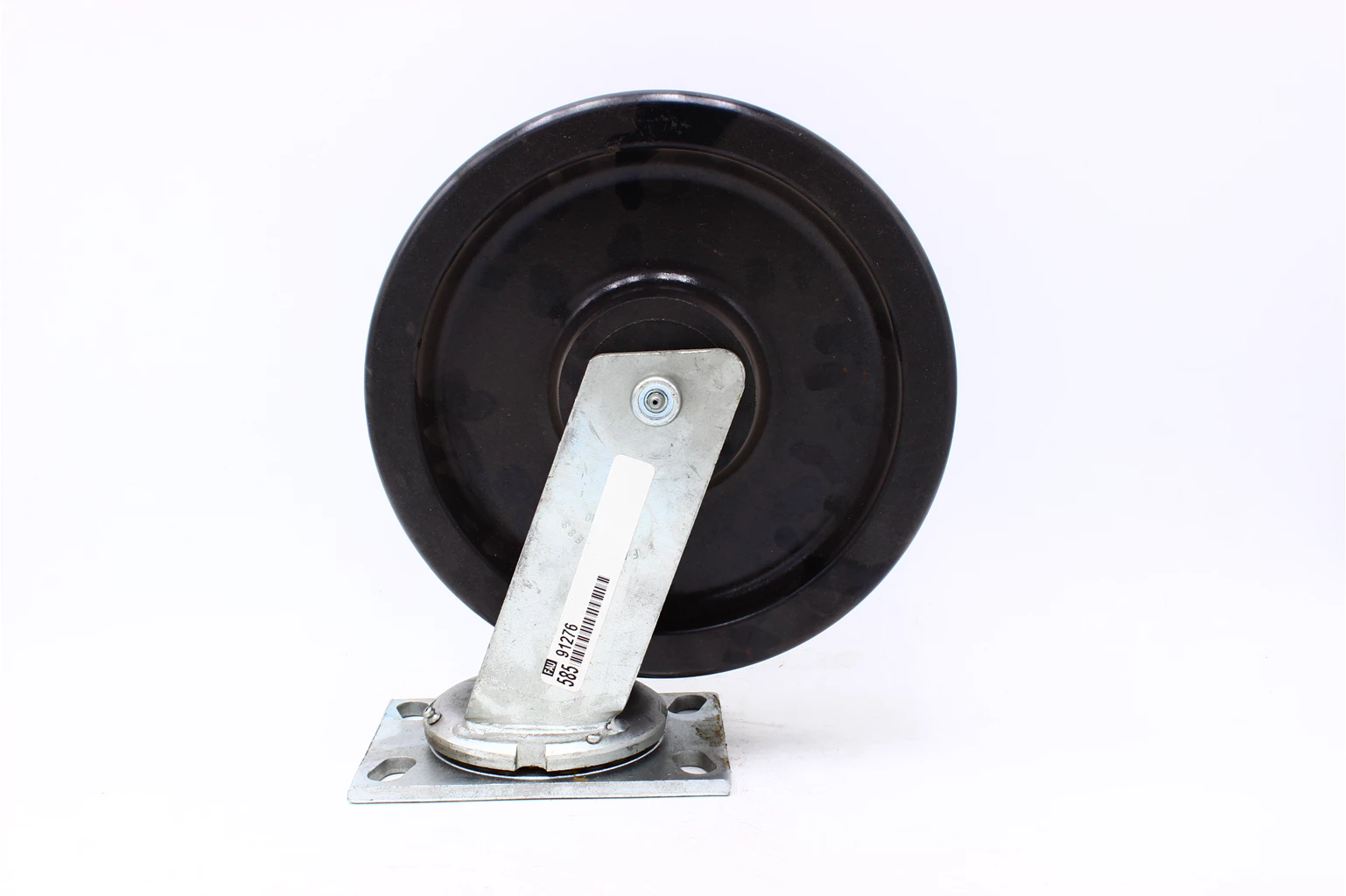

FAULTLESS 91276 H1431-10X2-1/2 H.D. SWIVEL

  • CAD / EA
Faultless logo


  • This item ( FAU91276 ) is a special order item. Please contact to purchase offline.
  • An additional core charge of ${{selectedVariation.CoreCharges}} applies to this product.
  • An additional environmental fee of ${{selectedVariation.EnviroFees}} applies to this product.

Out Of Stock
No Longer Available
Not Available



  • Recommended for heavy duty trucks, dollies, platform trucks, and a variety of equipment used in industry. Both upper and lower raceways are hardened to resist wear for added life.
  • Top Plate — Extra-thick 5/16" carbon steel, heat-treated for added strength and durability in severe service
  • Yoke — Cold formed 1/4" steel, notched for optional 4-position lock
  • Kingpin — An extra-heavy 7/8" diameter king pin assembly aligns raceway
  • Upper Raceway — 7/16" diameter hardened ball bearings
  • Lower Raceway — 5/16" diameter hardened ball bearings
  • Formed Side Members — Cold formed from 1/4" steel for added strength, then welded to the yoke base
  • Wheel Bearings — Large diameter industrial-grade roller bearings
  • Heavy-Duty Axle — Solid 1/2" diameter axle with lock nut for quick easy wheel replacement
  • Lubrication — Fittings are installed for both swivel raceway and wheel bearings as required
  • Finish — Corrosion-resistant zinc
  • Phenolic (Plaskite) Wheels — Phenolic compound reinforced with macerated fabric makes a high-strength, high-impact resistant to oil, gasoline, even dilute acids. Compression-molded under extreme pressure, these wheels gain a dense, uniform consistency. Phenolic wheels are non-marking, non-conductive, and spark-proof. Will not warp or swell in a temperature operating range of -40 to 149°C. Temperature Range: -40 to 149°C
  • Swivel Casters — Have a swivel horn and wheel assembly that will rotate through 360°

  • Product details

Part Number
Manufacturer Part Number
Code No
Load Rating
1¸800 lbs
Tread Width
Wheel Diameter
Wheel Material
VIEW SDS SDS Sheet for
