Actual Product Title: H3438-10X2-1/2 H.D. RIGID
New Product Title: FAULTLESS 91685 H3438-10X2-1/2 H.D. RIGID

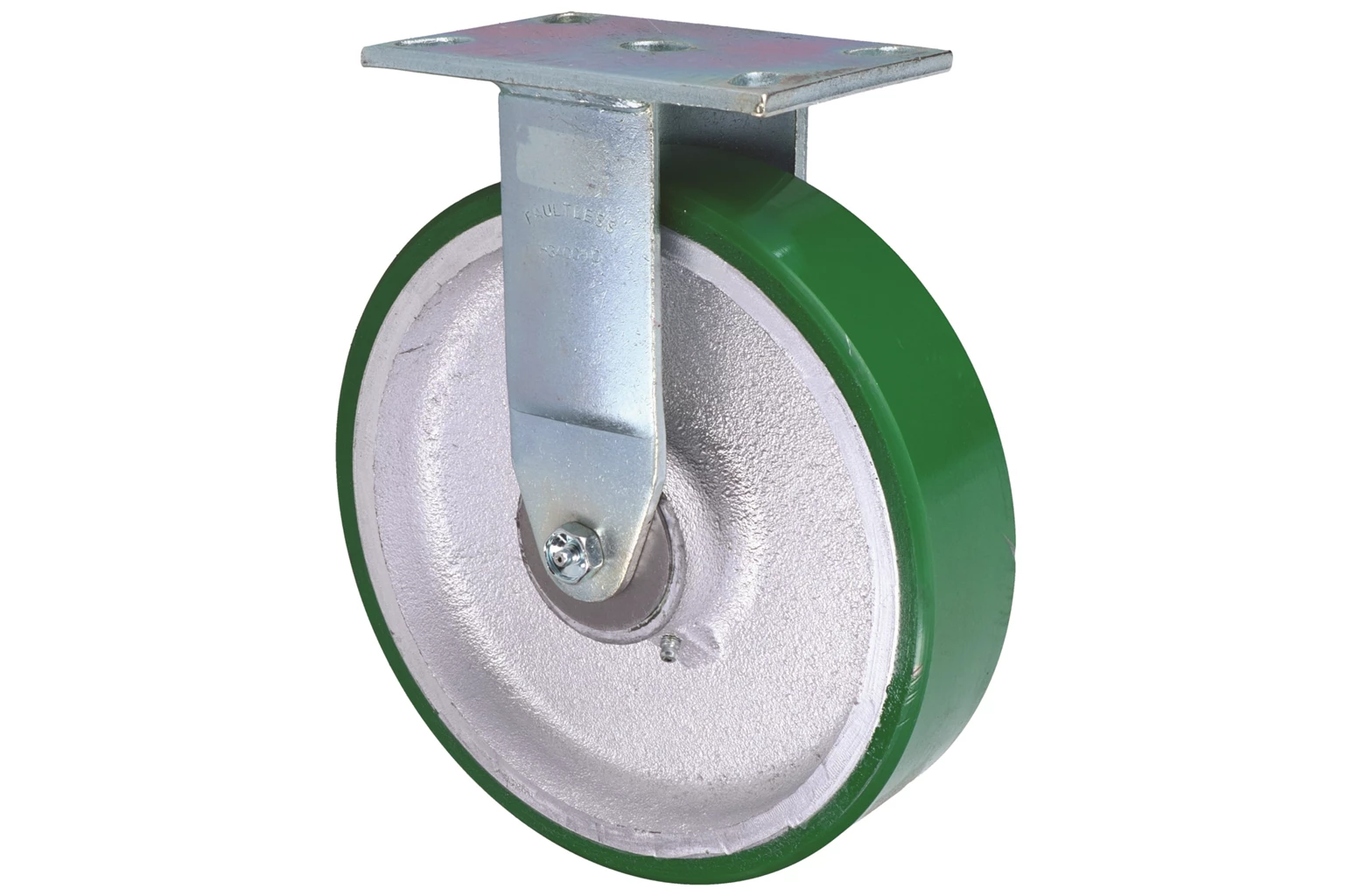

FAULTLESS 91685 H3438-10X2-1/2 H.D. RIGID

  • CAD / EA
Brand:
Faultless logo
Brand:

Faultless

  • This item ( FAU91685 ) is a special order item. Please contact sales@ohcanadasupply.ca to purchase offline.
  • An additional core charge of ${{selectedVariation.CoreCharges}} applies to this product.
  • An additional environmental fee of ${{selectedVariation.EnviroFees}} applies to this product.

Loading....
Available
Out Of Stock
No Longer Available
Not Available

Features

Features

  • Recommended for heavy duty trucks, dollies, platform trucks, and a variety of equipment used in industry. Both upper and lower raceways are hardened to resist wear for added life.
  • Top Plate — Extra-thick 5/16" carbon steel, heat-treated for added strength and durability in severe service
  • Yoke — Cold formed 1/4" steel, notched for optional 4-position lock
  • Kingpin — An extra-heavy 7/8" diameter king pin assembly aligns raceway
  • Upper Raceway — 7/16" diameter hardened ball bearings
  • Lower Raceway — 5/16" diameter hardened ball bearings
  • Formed Side Members — Cold formed from 1/4" steel for added strength, then welded to the yoke base
  • Wheel Bearings — Large diameter industrial-grade roller bearings
  • Heavy-Duty Axle — Solid 1/2" diameter axle with lock nut for quick easy wheel replacement
  • Lubrication — Fittings are installed for both swivel raceway and wheel bearings as required
  • Finish — Corrosion-resistant zinc
  • Mold-On Polyurethane (Duro Tred) Wheels — Polyurethane tread permanently attached to a metal core delivers cushioned ride, excellent mobility, and extended life under extremely heavy loads. Duro-Tred wheels protect and loads better and will wear four to ten times longer than other wheel materials. Standard with roller bearings. Temperature Range: -40 to 110°C
  • Rigid Casters — Have a rigid horn and wheel assembly permitting only straight line travel

  • Product details

Brand
Part Number
Manufacturer Part Number
Code No
H3438-10X2-1/2
Load Rating
1¸800 lbs.
Tread Width
2-1/2”
Wheel Diameter
10”
Wheel Material
Mold-on Polyurethane
