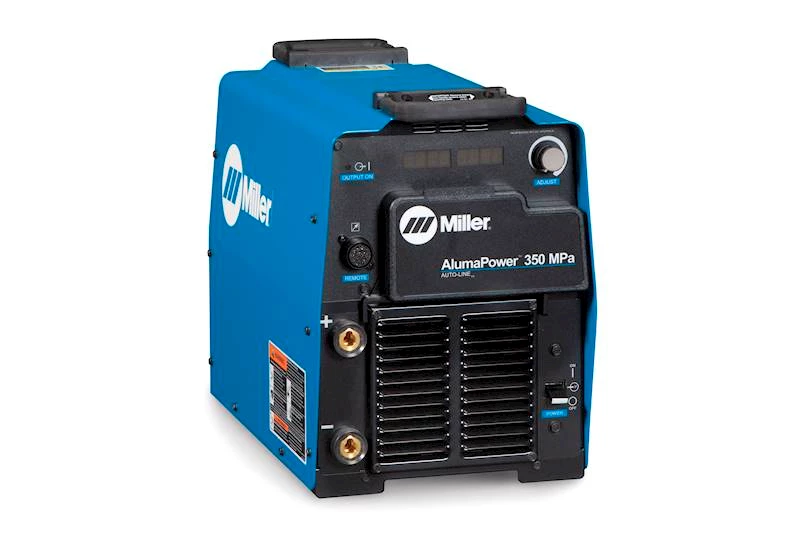

MILLER 907420 ALUMAPOWER 350 MPA P/S

  • CAD / EA
By:
Miller logo
By:

Miller

  • This item ( MLR907420 ) is a special order item. Please contact sales@ohcanadasupply.ca to purchase offline.
  • An additional core charge of ${{selectedVariation.CoreCharges}} applies to this product.
  • An additional environmental fee of ${{selectedVariation.EnviroFees}} applies to this product.

Loading....
Available
Out Of Stock
No Longer Available
Not Available

Features

Features

  • AlumaPower 350 MPa Power Source Only. 208-575 V.
  • AlumaPower™ 350 model allows for any input voltage hookup (208-575 V) with no manual linking.
  • 450 model is 230/460 V manual link or 575 V, three-phase only.
  • Synchronized, true push-pull wire feed system for precise wire feeding and arc performance.
  • Profile Pulse™ provides TIG appearance with MIG simplicity and productivity. Achieve "stacked dimes" without gun manipulation. Profile Pulse frequency can be changed to increase or decrease the spacing between the ripple pattern to achieve the desired weld appearance.
  • Synergic Pulsed MIG. As wire speed increases/decreases, pulse parameters also increase/decrease to match the right amount of power needed, eliminating the need to make additional adjustments.
  • Built-in MIG and Pulsed MIG programs automatically set the optimal parameters for a wide variety of wires making it easy to set up and use.
  • Parameter and system locks enhance quality assurance and protect weld consistency.
  • Trigger schedule select allows operator to change between two sets of weld parameters.
  • Processes: Aluminum MIG (GMAW); Aluminum Pulsed MIG (GMAW-P).
  • The Auto-Line circuit boosts primary power to a higher, constant voltage. Even if incoming voltage varies widely, the circuit ensures a rock-steady welding or cutting arc.
  • Unit requires single-phase input power.
  • Unit requires three-phase input power.
  • Unit supplies constant-voltage weld output.
  • Unit supplies direct current weld output.
  • Heavy industrial products are suited to high-volume production and/or welding of thicker materials. They typically have a duty cycle of 60 to 100% and a rated output of at least 300 amps. Heavy industrial products are designed with the arc characteristics and product features professional welders demand for code-quality work

  • Product details

Brand
Part Number
Manufacturer Part Number
Amperage Range
5-425 A 10-38 V & 5-425 A 10-38 V
Amps Input at Rated Output, 60 Hz - 200 V
40.4 & 60.8
Amps Input at Rated Output, 60 Hz - 230 V
36.1 & 54.6
Amps Input at Rated Output, 60 Hz - 400 V
20.6 & 29.7
Amps Input at Rated Output, 60 Hz - 460 V
17.8 & 24.5
Amps Input at Rated Output, 60 Hz - 575 V
14.1 & 19.9
Amps Input at Rated Output, 60 Hz - KVA
14.2 & 11.7
Amps Input at Rated Output, 60 Hz - KW
13.6 & 11.2
Dimensions (Imperial)
17 in (H) x 12.5 in (W) x 24 in (D)
Dimensions (Metric)
432 mm (H) x 318 mm (W) x 610 mm (D)
Maximum Open-Circuit Voltage
75 VDC
Model Number
AlumaPower 350 Mpa
Net Weight
80 lb (36.3 kg)
Rated Output
350 A at 34 VDC¸ 60% duty cycle & 300 A at 32 VDC¸ 60% duty cycle
