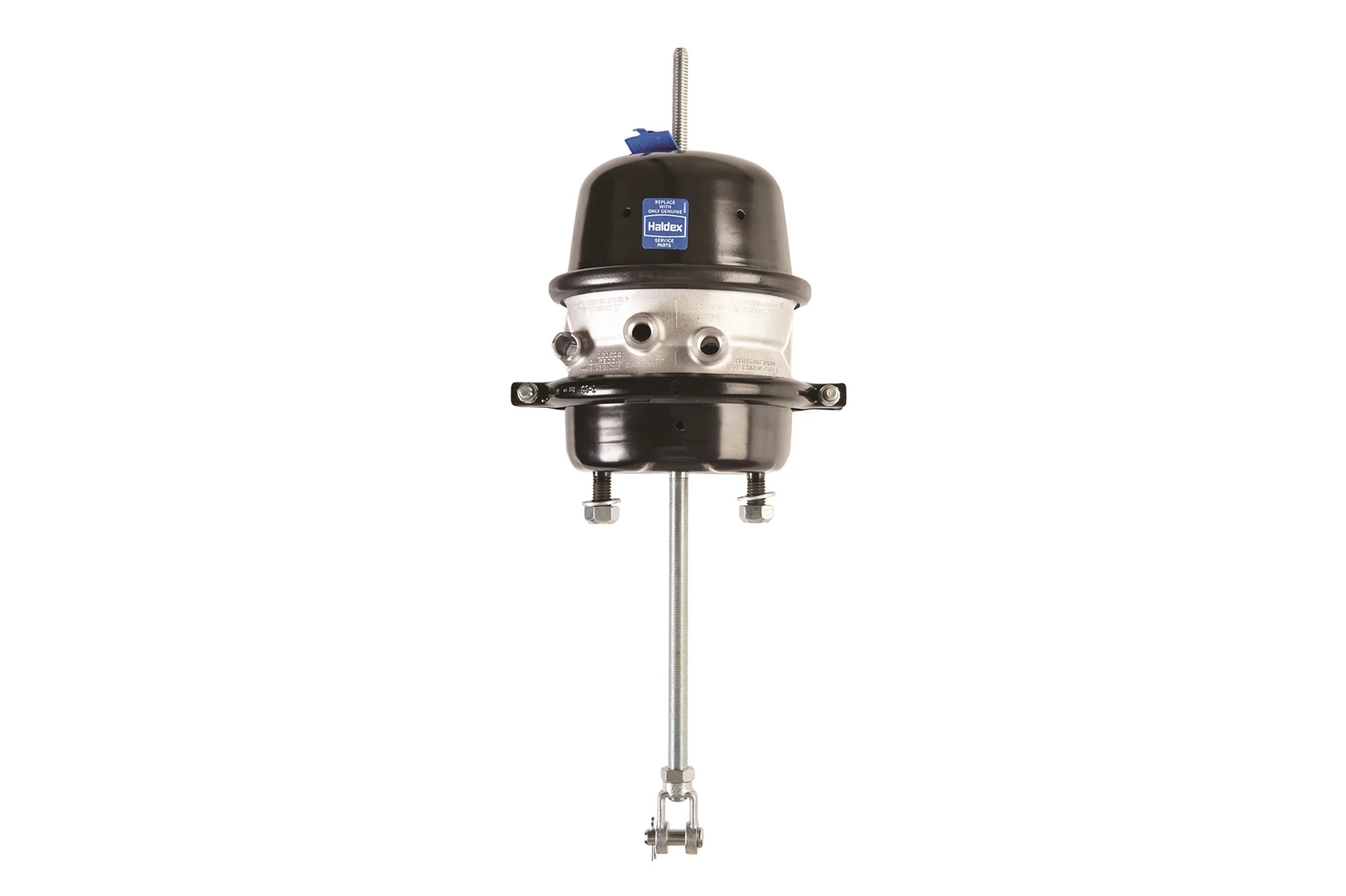

HALDEX GC3030 COMBO SPRING BRAKE

  • CAD / EA
Brand:
Haldex logo
Brand:

Haldex

  • This item ( MIDGC3030 ) is a special order item. Please contact sales@ohcanadasupply.ca to purchase offline.
  • An additional core charge of ${{selectedVariation.CoreCharges}} applies to this product.
  • An additional environmental fee of ${{selectedVariation.EnviroFees}} applies to this product.

Loading....
Available
Out Of Stock
No Longer Available
Not Available

Features

Features

  • 12-1/2" fully threaded push rod.
  • Orange alert stroke indicator.
  • Piloting dust shield and diaphragm.
  • Zinc plated spring chamber – permanently attached for safety.
  • 3 year unlimited mileage brake warranty.
  • Includes clevis.
  • Piloting diaphragm.
  • Epoxy powder coated spring and housing.
  • 2.50" stroke.
  • Formed steel housings for both emergency and service chambers – protected by zinc and yellow dichromate or black epoxy coating.
  • Epoxy coated emergency spring to protect against rust and corrosion.
  • Centre body of diecast aluminum alloy.
  • Caging bolt in centre body holster for safe, secure storage.
  • Natural rubber blend diaphragm is standard.
  • Cold temperature extremes to -40°C.
  • Rated volume at 2.50" stroke: Service Chamber Volume, 86 cu. in.; Emergency Chamber Volume: 88 cu. in.; 1,300 lb. Spring Force at 1.25" stroke; Push Rod Length: 12.50"; Stud Type: 5/8 x 11 UNC Grade 5; Clamp Band Orientation: 135°; Side Port Orientation: 90°.

  • Product details

Brand
Part Number
Manufacturer Part Number
Model Style
Gold Seal combination spring brake
Type
30/30
